Shifts of Simple Elements ​

Spiked Plank​Christmas Tree​Gunpowder Keg​Thermometer​Hygrometerin vanilla that can be interacted with electric, and they don't have a shift or classic type in this mod.

Wires v2.0 ​

  • ⭕ Vanilla：In creative game mode inventory, there are 7 colors of wires.
  • ⚡ Gigavolt：In creative game mode inventory, there are 14 colors of wires and a Wire Harness. The new harness wire and colored wires as shown in the image below, and they are in theGigavolt Shiftcategory.
The image of new colorful wires and harness wire

Adjustable Delay Gate v2.0 ​

⭕ Vanilla ​

  • Outputs from the top and back ports.
  • You have to manually adjust the delay time in the dialog.

⚡ Gigavolt ​

  • Outputs from the top port.
  • You can't manually adjust the delay time. The delay time can only be adjusted by the voltage from the back. The initial delay time is 0.01 seconds, when the back input voltage increases 1 V, the delay time increases 0.01 seconds. If the back input voltage is greater than or equal to 0xFF V, the delay time reaches the maximum value of 2.56 seconds.

SR Latch v1.0 ​

  • ⭕ Vanilla：When the S input is greater than 0.7 V, the output is locked at 1.5 V until reset.
  • ⚡ Gigavolt：When the S input is greater than 0 V, the output is locked at the voltage of the S input until reset.

Switch & Button & Battery v2.0 ​

⭕ Vanilla ​

Default output is 1.5 V.

⚡ Gigavolt ​

  • Default output is 0xFFFFFFFF V.

⚠ Important Caution

Other elements whose vanilla version output 1.5 V in default, will output 0xFFFFFFFF V in default. This feature also affects the classic elements.

  • You can manually edit the output duration of buttons.
  • New colored buttons and switches are added. They can’t connect to the wires with different colors besides harness wire. They’re in theGigavolt Shiftcategory.
The image of new colored buttons and switches

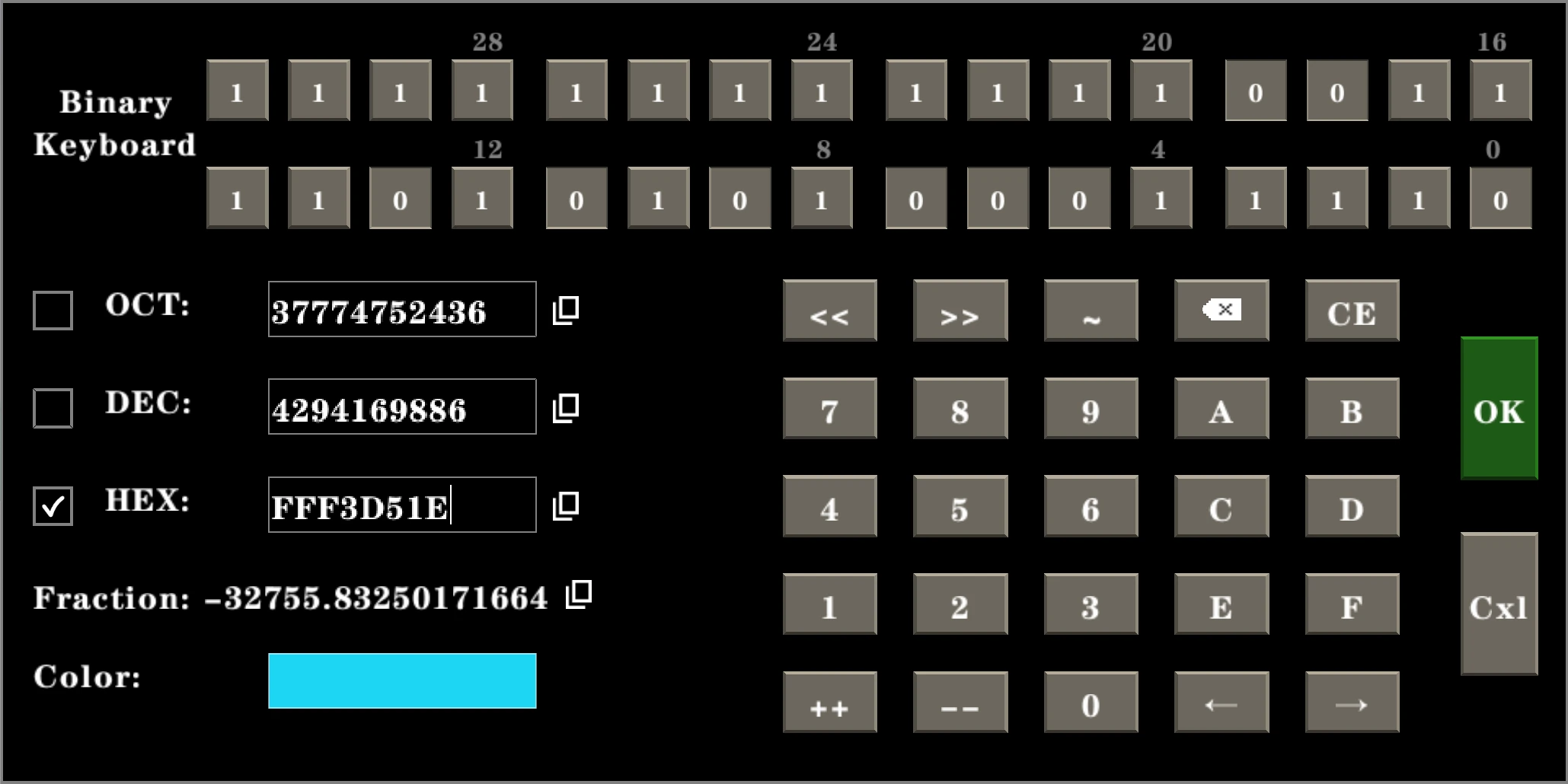

  • New edit voltage dialog for 32-bit.
The image of new edit voltage dialog

Fraction：In this case, it's the decimal fraction transformed from the voltage. The transform rule: The highest(leftmost) bit represents the sign, the radix point is between the 16th and 17th bit.

Counter v1.0 ​

⭕ Vanilla ​

The default overflow voltage is 1.6 V, and the upper limit is 1.5 V.

⚡ Gigavolt ​

  • The default overflow voltage is 0x100000000 V, and the upper limit is 0xFFFFFFFF V.
  • You can manually edit the overflow voltage, initial voltage, and current voltage.

Pressure Plate v1.0 ​

  • ⭕ Vanilla：It generates a voltage between 0.8 and 1.5 V when it is pressed, and the relation of the pressure and voltage is chaotic.
  • ⚡ Gigavolt：It generates an accurate voltage of the pressure. Reference result: male player 0x46 V, orca 0x5DC V.

Piston v2.0 ​

⭕ Vanilla ​

  • Extends when the input voltage is greater than 0.7 V.
  • The maximum extension, push and pull length is 8 blocks.

⚡ Gigavolt ​

  • Extends when the input voltage is greater than 0 V.
  • The maximum extension, push and pull length is 232-1 blocks. (If a piston gets stuck when pushing or pulling too many blocks, it is caused by other game subsystems.)
  • More speed options: 2xFast, 3xFast, 4xFast.
  • New option: Hide Pole (hide the extension pole).
  • In addition, Complex type is available.

Multicolored LED、1-LED v1.0 ​

⭕ Vanilla ​

The input voltage between 0.8 V and 1.5 V produces light of 8 different colors.

⚡ Gigavolt ​

  • The input voltage with an alpha channel greater than 0 produces light of 4 billion different colors. The color mode is ABGR.
  • 1-LED produces light from the whole surface. There are no joint lines between two 1-LED.

📝 ABGR Color Mode

From high to low bits，every 8 bits represents the color's Alpha chanel、Blue chanel、Green chanel、Red chanel. You can use the tool below to convert.

🛠️ Voltage Color Converter
Voltage:
HEX
›
A
B
G
R

Target v1.0 ​

  • ⭕ Vanilla：Outputting voltage between 0.8 and 1.5 V determines how close to the center the hit occurred.
  • ⚡ Gigavolt：Outputting voltage between 0 and 0xFFFFFF00 V determines how close to the center the hit occurred. Because of coordinate precision of the game, the lowest 8 bits are always 0.

Electric Detonator v1.0 ​

  • ⭕ Vanilla：Produces an explosion with a power of 10 when the input voltage is greater than 0.7 V.
  • ⚡ Gigavolt：Produces an explosion with a power of input voltage, which means when the input voltage is less than 0.8 V, it also explodes. There is an Easter Egg when the input voltage is 0xFFFFFFFF V.

Doors, Trapdoors, Fence Gates v1.0 ​

  • ⭕ Vanilla：Open or close when the input voltage changes from less than 0.8 V to greater than 0.7 V.
  • ⚡ Gigavolt：The opening degree is controlled by the input voltage, 0V closed, 0x2D V opens 45 degrees, 0x5A V and above fully open. No classic type.

Complex Elements ​

See：

  • Digital to Analog And Analog to Digital Converter - Changes to 4 combiners and 4 splitters.
  • Memory Bank - The row and column limits are raised to 232-1.
  • Truth Table Circuit - Besides being able to output voltages based on specified inputs like the classic type, it can also perform expression calculations.
  • Real Time Clock - Outputs the time in the real world.
  • Sound Generator - Plays PCM-encoded audio data.
  • Complex Piston - Completely controlled by input voltage. When the input voltage changes, it will try to adjust.
  • Sign - It can display texts floating in the air.
  • Dispenser - The speed, angel, and so on are controlled by input voltage. When the input voltage changes, it will try to shoot or dispense. The shoot mode is default.
